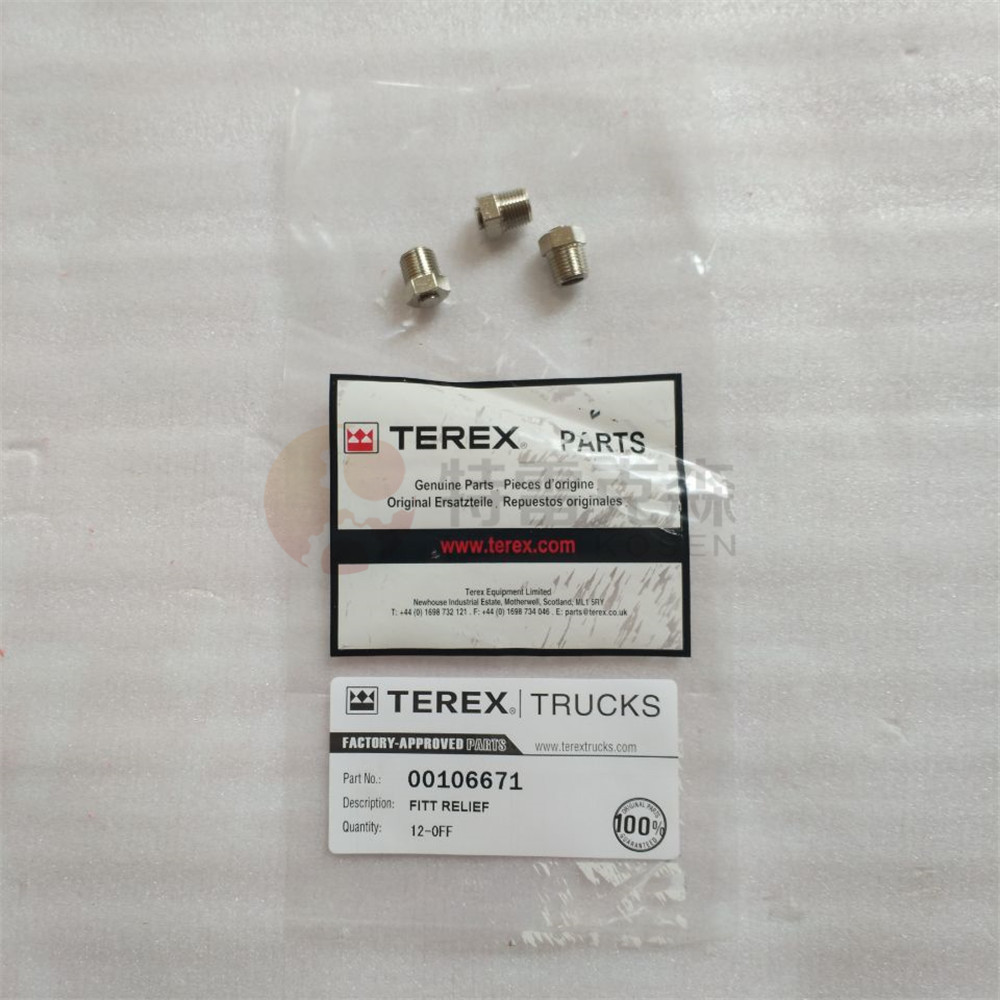

TEREX 106671 FITTING-RELIEF for terex tr100 truck
Terre Kosen Mine Equipment Co., Ltd specializes in supplying TEREX truck parts,marketing global.offering the highest quality parts with competitive price.
Established in 2009, We have been manufacturing/exporting high-quality parts at low costs to companies world-wide,Following strict I.S.O guidelines and control quality process.
Large amount parts are in stock make the parts lead-time shorter.Rich export experience make you import parts easier and faster.
Terex dump truck parts for 3303;3304;3305;3307;TR35;TR45;TR50;TR60;TR100
Terex haul truck for 3303;3304;3305;3307;TR35;TR45;TR50;TR60;TR100
Terex off-highway for dump truck 3303;3304;3305;3307;TR35;TR45;TR50;TR60;TR100
Terex end dumper for 3303;3304;3305;3307;TR35;TR45;TR50;TR60;TR100
Terex parts for quarry
Terex earthmoving equipment parts
180-0030-7831 FRONT RIDE CYLINDER
| FROM SERIAL NO. T7831479 | FROM SERIAL NO. T7831479 |
SER.NO. SER.NO.
NC REF QTY PART NO. DESCRIPTION FROM TO | SER.NO. SER.NO.
NC REF QTY PART NO. DESCRIPTION FROM TO |
000 001 15335710 CYLINDER ASSY-FRONT T7831479 T7831543
000 001 15352794 CYLINDER ASSY-FRONT T7831544
001 001 09384099 .CAP-END
A 002 001 09411010 .FITTING-GREASE
A 003 001 09013688 .VALVE-CHECK
004 001 00444613 .PLUG
A 005 002 15016161 .O RING
A 006 002 09069472 .RING-BACKUP
007 001 09069476 .TUBE
008 020 09269710 .BOLT
009 001 09069475 .PISTON
A 010 001 09069468 .RING-PISTON T7831479 T7831543
A 010 001 15352491 .RING-PISTON T7831544
011 001 15335709 .ROD-PISTON
012 002 00169162 .BALL
013 001 15315332 .SEAL RETAINER
A 014 001 15233291 .SEAL
A 015 001 09222091 .O RING
016 016 00223457 .BOLT
017 016 09355771 .NUT
018 001 09383858 .TUBE ASSY
A 019 001 15250986 .RING-WEAR T7831479 T7831543
A 019 001 15352493 .RING-WEAR T7831544
A 020 001 06525035 .VALVE ASSY-RECHARGE
021 001 09030336 ..RING-LARGE
022 001 09190141 ..RING-SMALL
023 001 09034883 ..CORE
024 001 NSS ..CAP
A 025 001 09069467 .SEAL
A 026 001 09069466 .WIPER
027 020 09068666 .WASHER-HARDENED
A 028 001 00106671 .FITTING-RELIEF
029 001 15315331 .ANTI-EXTRUSION RING
A 030 001 15315333 .WEAR RING T7831479 T7831543
A 030 001 15352492 .WEAR RING T7831544
031 006 09250715 WASHER-HARDENED
032 002 09019478 KEY-SHEAR
033 010 09423349 BOLT
034 014 15357548 WASHER-HARDENED | 035 004 15244531 BOLT
036 001 09069958 COVER
037 006 00271617 BOLT
038 001 15253061 ADAPTOR T7831734
039 001 15253079 PIPE CAP T7831734
040 001 00444688 PLUG T7831734
NOTES:
A PARTS IN 9396484 OVERHAUL KIT |
180-0030-7831 FRONT RIDE CYLINDER
|
|
TEREX 106671 FITTING-RELIEF for terex tr100 truck Images
|
